Expanding Pins (Hex Head)

Alignment Pins

Save to My Project

What is this?

Product Information

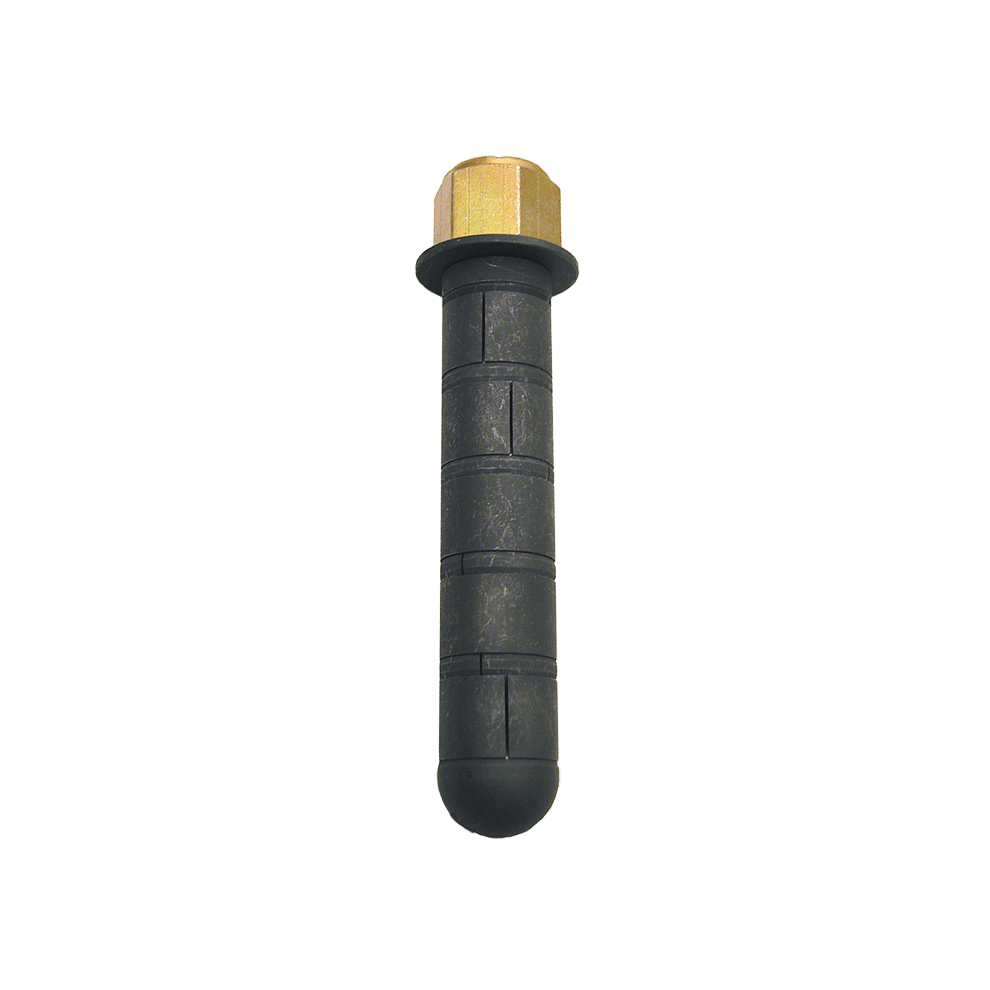

Expanding Pins (Hex Head) Part # CL-4-EXPH-2.00 Carr Lane Mfg.®

Expanding Pins are precision alignment pins that expand slightly to tighten up hole clearance. This pin is an assembly of female split bushings separated by male segments, all on a center spindle, that expands when drawn together. This assembly provides excellent shear strength, comparable to a solid pin. Expanding Pins can be installed in through holes or blind holes. Available in standard pin diameters from 1/4 to 3/4", each in a choice of several lengths. Made in USA.

Operation

Expanding Pins are an assembly of female split bushings separated by male segments, all on a center spindle, that expands when drawn together. Tightening the hex nut with a wrench expands the pin diameter to take up slack and secure the pin in place. Hold center spindle stationary with a hex wrench while tightening.

Design Considerations

Choose a proper pin length such that no split bushings extend beyond the installation hole. All bushings must be contained by the hole in order to exert full pressure and avoid over-expanding the bushings.

Material

Split bushings, male segments, and spacers > 17-4PH stainless, 17-4PH stainless, Rc 40 min, passivated, dry film lube. Center spindle > Rc 36-40, passivated, dry film lube. Barrel nut and washer > 17-4PH stainless, passivated, dry film lube. Hex nut > 17-4PH stainless, with locking element. RoHS compliant.

Click here for detailed material and finish specifications.

Expanding Pins (Hex Head)

Inch

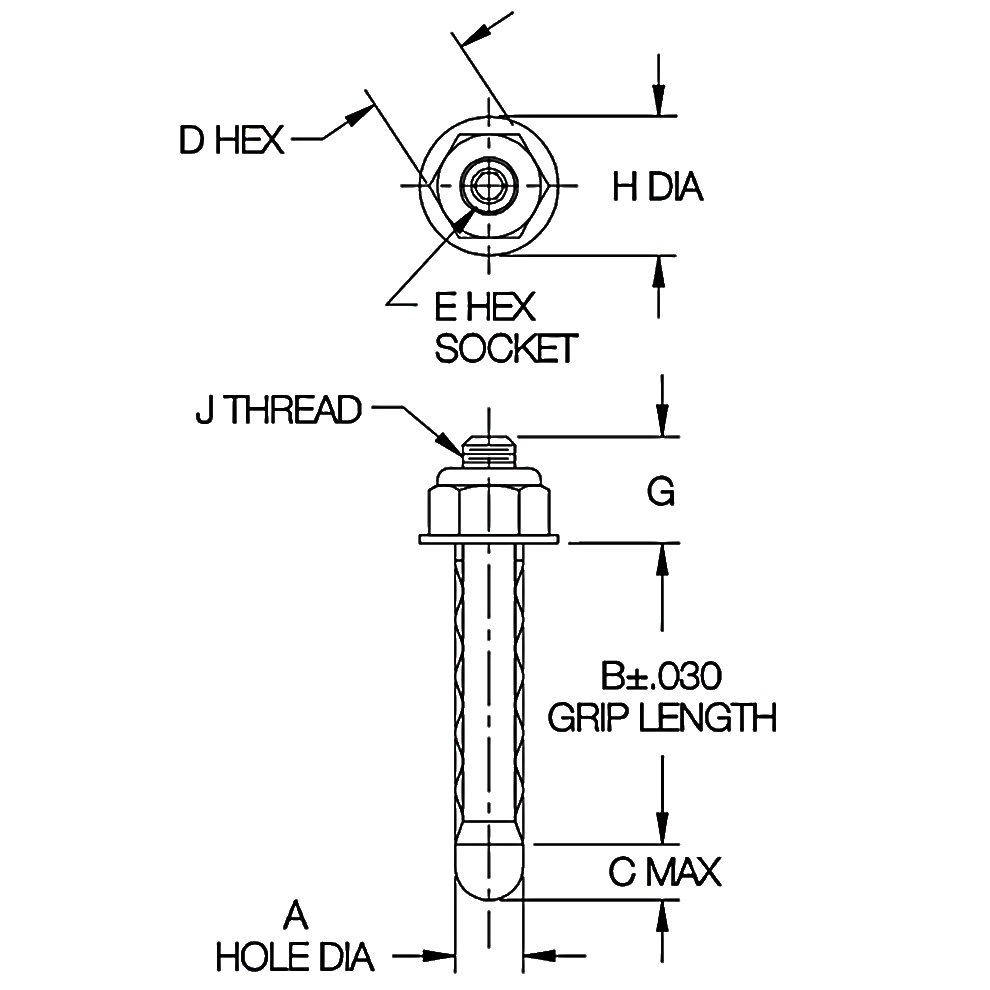

QUANTITY	PART NO.	A DIA NOMINAL	A DIA RANGE	B	C	D	E	G	H DIA	J THREAD	DOUBLE- SHEAR STRENGTH (lbs)	INSTALLATION TORQUE (ft-lbs)
	CL-4-EXPH-0.50	1/4	.250 / .254	.50	1/4	3/8	3/32	.39	.63	#10-32	4,000	3
	CL-4-EXPH-0.75	1/4	.250 / .254	.75	1/4	3/8	3/32	.39	.67	#10-32	4,000	3
	CL-4-EXPH-1.00	1/4	.250 / .254	1.00	1/4	3/8	3/32	.39	.67	#10-32	4,000	3
	CL-4-EXPH-1.50	1/4	.250 / .254	1.50	1/4	3/8	3/32	.39	.67	#10-32	4,000	3
	CL-4-EXPH-2.00	1/4	.250 / .254	2.00	1/4	3/8	3/32	.39	.67	#10-32	4,000	3
	CL-4-EXPH-3.00	1/4	.250 / .254	3.00	1/4	3/8	3/32	.39	.67	#10-32	4,000	3
	CL-5-EXPH-1.00	5/16	.312 / .317	1.00	5/16	3/8	3/32	.40	.63	#10-32	6,300	3
	CL-5-EXPH-2.00	5/16	.312 / .317	2.00	5/16	3/8	3/32	.40	.67	#10-32	6,300	3
	CL-5-EXPH-3.00	5/16	.312 / .317	3.00	5/16	3/8	3/32	.40	.67	#10-32	6,300	3
	CL-6-EXPH-1.00	3/8	.375 / .380	1.00	3/8	7/16	1/8	.49	1.00	1/4-28	9,000	7.5
	CL-6-EXPH-1.50	3/8	.375 / .380	1.50	3/8	7/16	1/8	.49	1.00	1/4-28	9,000	7.5
	CL-6-EXPH-2.00	3/8	.375 / .380	2.00	3/8	7/16	1/8	.49	1.00	1/4-28	9,000	7.5
	CL-6-EXPH-3.00	3/8	.375 / .380	3.00	3/8	7/16	1/8	.49	1.00	1/4-28	9,000	7.5
	CL-8-EXPH-0.50	1/2	.500 / .505	.50	1/2	9/16	3/16	.71	1.00	3/8-24	16,100	29
	CL-8-EXPH-1.00	1/2	.500 / .505	1.00	1/2	9/16	3/16	.71	.92	3/8-24	16,100	29
	CL-8-EXPH-1.50	1/2	.500 / .505	1.50	1/2	9/16	3/16	.71	.92	3/8-24	16,100	29
	CL-8-EXPH-2.00	1/2	.500 / .505	2.00	1/2	9/16	3/16	.71	.92	3/8-24	16,100	29
	CL-8-EXPH-3.00	1/2	.500 / .505	3.00	1/2	9/16	3/16	.71	.92	3/8-24	16,100	29
	CL-10-EXPH-1.00	5/8	.625 / .630	1.00	5/8	3/4	1/4	.90	1.00	1/2-20	25,100	83
	CL-10-EXPH-1.50	5/8	.625 / .630	1.50	5/8	3/4	1/4	.90	1.00	1/2-20	25,100	83
	CL-10-EXPH-2.00	5/8	.625 / .630	2.00	5/8	3/4	1/4	.90	1.00	1/2-20	25,100	83
	CL-10-EXPH-3.00	5/8	.625 / .630	3.00	5/8	3/4	1/4	.90	1.00	1/2-20	25,100	83
	CL-12-EXPH-2.00	3/4	.750 / .757	2.00	3/4	7/8	1/4	1.02	1.02	9/16-18	36,200	121
	CL-12-EXPH-3.00	3/4	.750 / .757	3.00	3/4	7/8	1/4	1.02	1.02	9/16-18	36,200	121
	CL-12-EXPH-4.00	3/4	.750 / .757	4.00	3/4	7/8	1/4	1.02	1.02	9/16-18	36,200	121
