Adaptor Tip Assembly

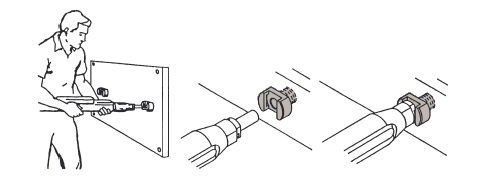

To mount air-feed drill, insert in liner and turn
30° counterclockwise to lock.

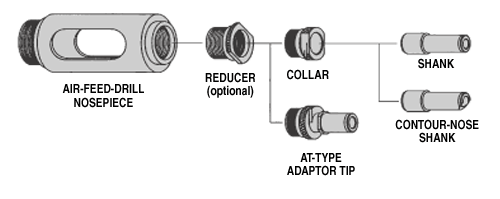

Standard Air-Feed Drills

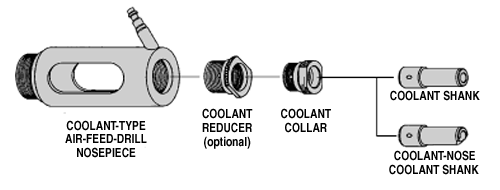

Coolant-Type Air-Feed Drills
Mounting Options
TAPER-LOK LINERS
New-design one-piece lock liner has angular locking surfaces for superior strength. Allows very close hole spacing. Hold in place with a lock nut. Also available knurled for installing in plastic tooling.
LOCK LINERS
Conventional lock liner incorporating two lock screws. Hold in place with a lock nut.
TAPER-LOK
AIR-FEED LOCKSCREWS
New-design lock screw especially for air-feed drills. Angular locking surface for superior strength.
LOCKSCREWS
Conventional-style lock screws. Install two lock screws and a liner bushing directly in jig plate.
LOCK STRIPS
Allows the closest possible hole spacing. Use together with liner bushings.
